| Battery voltage | 12.0 V |
|---|---|
| Measurement range | -20 °C to +450 °C |
| Measuring accuracy of IR | ± 2.0 °C |
| Measuring application | Thermal image |
| Data transfer | USB-C® |
| Thermal sensitivity (NETD) | <=50 mK |
| Thermal image refresh rate | 9 Hz |
| Resolution | 0.1 °C |
| Laser diode | 645 – 660 nm |
| Size of IR sensor | 256 Pixel x 192 Pixel |
| Number of measuring points | 49,152 |
| Power supply and runtime | 4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours |
| Frame buffer (number of images) | 500 |
| Memory type | internal memory |
| File format of image | .jpg |
| Shock protection | 2 m |
| Dust and splash protection | IP54 |
| Weight | 0.35 kg |
| Size of display | 2.8" |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 50 °C |
| Focus distance, minimum | 0.5 m |
| Tool dimensions (L x W x H) | 79 x 89 x 209 mm |
| Net weight | 0.356 kg |
| Gross weight | 1.089 kg |
| Field of view (FOV) | 56° x 42° |
| Order number | 06010839K0 |
Measuring Tools
Bosch GTC 450-13 Thermo Camera
Price on request

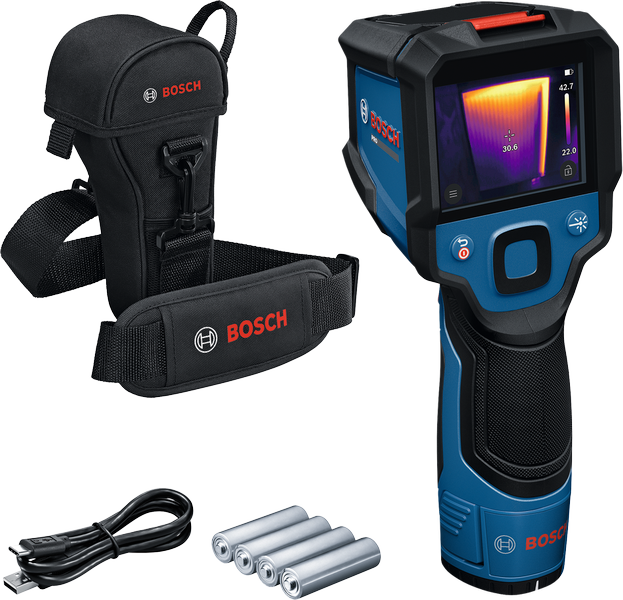

Thermal camera with a 256 x 192 sensor and a -20 to +450 °C range. Integrated laser, work light and visual camera, IP54 rated and drop-tested from 2 m.
| Range | Bosch Professional |
|---|---|
| Order number | 06010839K0 |
