| Battery voltage | 12.0 V |
|---|---|
| Measurement range | -10 °C to +400 °C |
| Measuring accuracy of IR | ± 3.0 °C |
| Measuring application | Thermal image |
| Data transfer | Wi-Fi, MicroUSB |
| Thermal sensitivity (NETD) | <=50 mK |
| Resolution | 0.1 °C |
| Size of IR sensor | 160 Pixel x 120 Pixel |
| Number of measuring points | 19,200 |
| Power supply and runtime | 4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V |
| Frame buffer (number of images) | 500 |
| Memory type | internal memory |
| File format of image | .jpg |
| Dust and splash protection | IP53 |
| Weight | 0.54 kg |
| Size of display | 3.5" |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Focus distance, minimum | 0.3 m |
| Tool dimensions (L x W x H) | 95 x 233 x 63 mm |
| Net weight | 0.495 kg |
| Gross weight | 1.177 kg |
| Field of view (FOV) | 53° x 43° |
| Order number | 0601083150 |
Measuring Tools

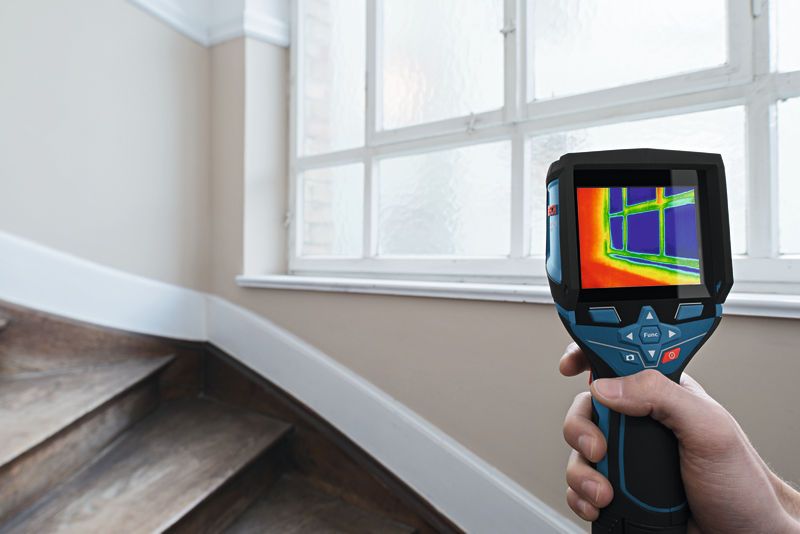

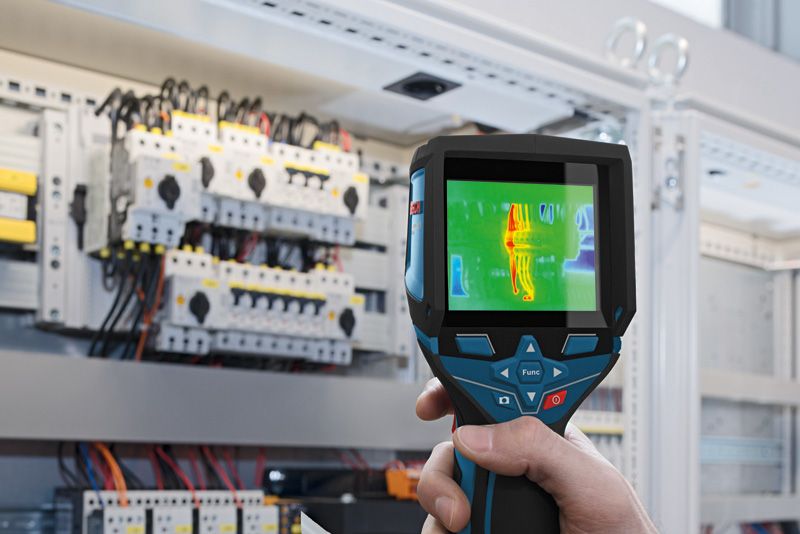

Bosch GTC 400 C Thermo Camera
Price on request
Thermal camera with a 160 x 120 sensor and a -10 to +400 °C range, overlaying thermal and real images to pinpoint problems. Wi-Fi transfer to the Bosch ThermalOn app, running on 12V or AA batteries.
| Range | Bosch Professional |
|---|---|
| Order number | 0601083150 |
