| Tripod thread | 1/4", 5/8" |
|---|---|
| Working range, value | 30 m |
| Battery voltage | 12.0 V |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range with receiver | 100 m (radius) |
| Accuracy | ± 0.3 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP65 |
| Power supply | 4 x 1.5 V LR6 (AA), 12 V Li-Ion battery |
| Operating time (max.) | 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
| Weight, approx. | 0.96 kg |
| Colour of laser line | Green |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
| Order number | 06010654K0 |
Measuring Tools

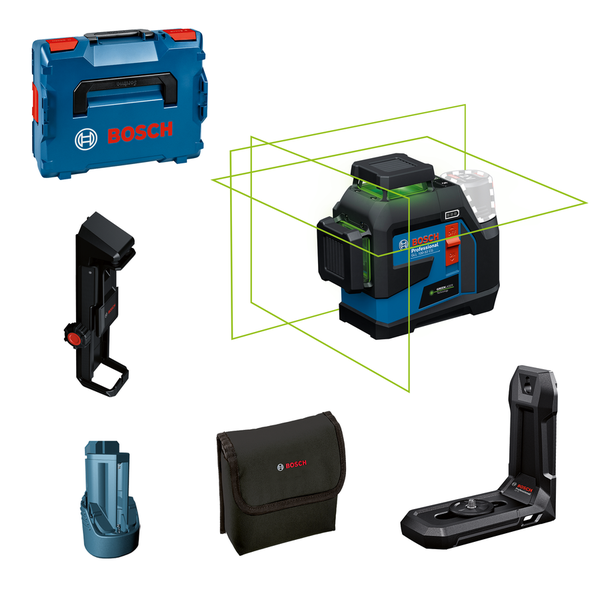

Bosch GLL 100-33 CG Line Laser
Price on request

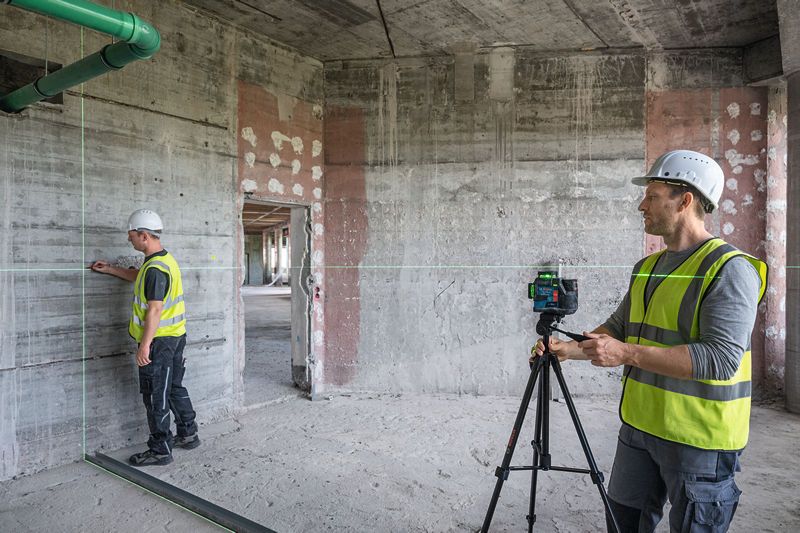

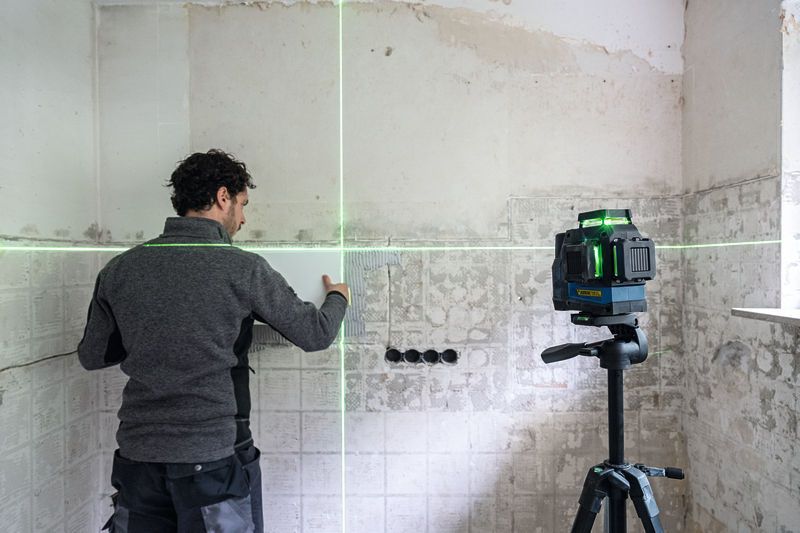

Green 3 x 360° line laser with ±0.3 mm/m accuracy and a 30 m range, or 100 m with a receiver. IP65 rated for dusty, wet sites, with hands-free line control through the Bosch Levelling Remote app.
| Range | Bosch Professional |
|---|---|
| Order number | 06010654K0 |
