| Length | 60 cm |
|---|---|
| Measurement range | 0° – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.1° |
| Working range (laser) | 30 m |
| Power supply, inclination measurement | 1 x 9 V-6LR61 + 2 x 1.5 V LR03 |
| Weight, approx. | 0.91 kg |
| Laser type | 650 nm, < 1 mW |
| Laser class | 2 |
| Levelling accuracy of laser | ± 0.5 mm/m |
| Units of measurement | °, %, mm/m |
| Laser range | 30 m |
| Tripod thread | 1/4" |
| Order number | 0601076900 |
Measuring Tools
Bosch GIM 60 L Digital Inclinometer
Price on request

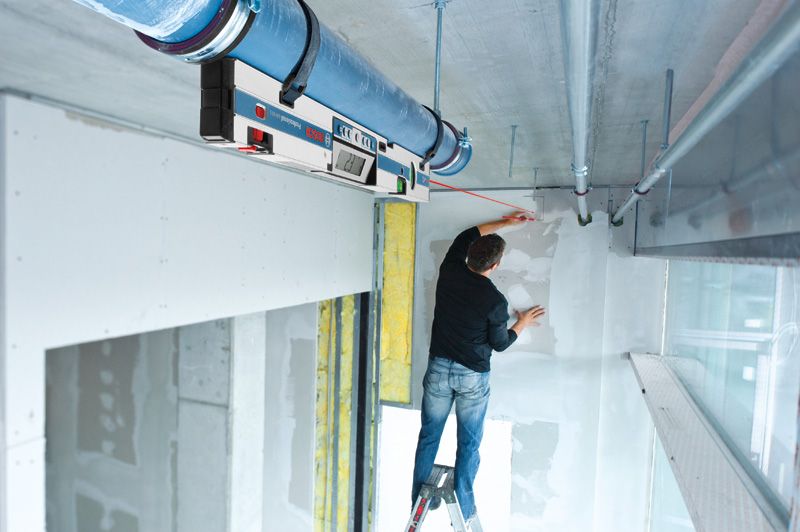

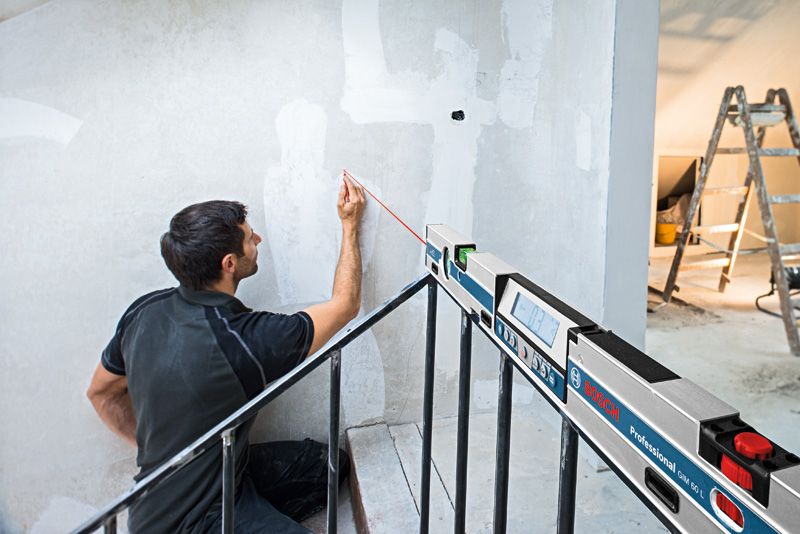

60 cm digital inclinometer with a built-in point laser for transferring angles up to 30 m. Strong magnets and straps to fix it to workpieces, accurate to ±0.05° at 0° and 90°.
| Range | Bosch Professional |
|---|---|
| Order number | 0601076900 |
