| Saw blade diameter | 216 mm |
|---|---|
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 2 ° R |
| Saw blade bore diameter | 30 mm |
| Cutting capacity, 0° | 70 x 315 mm |
| Cutting capacity, 45° mitre | 70 x 215 mm |
| Cutting capacity, 45° bevel | 40 x 305 mm |
| Tool dimensions (width x length x height) | 493 x747 x391 mm |
| No-load speed | 4,320 – 5,280 rpm |
| Weight | 15.3 kg |
| Order number | 0601B610L0 |
Saws

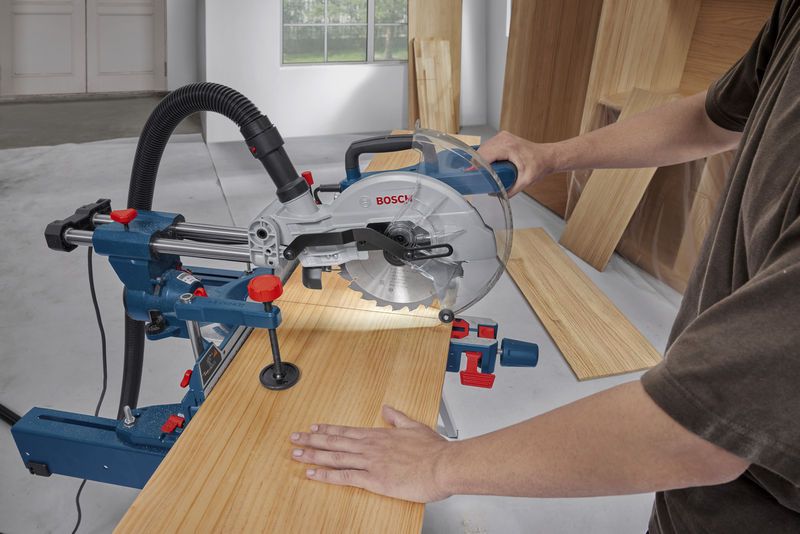

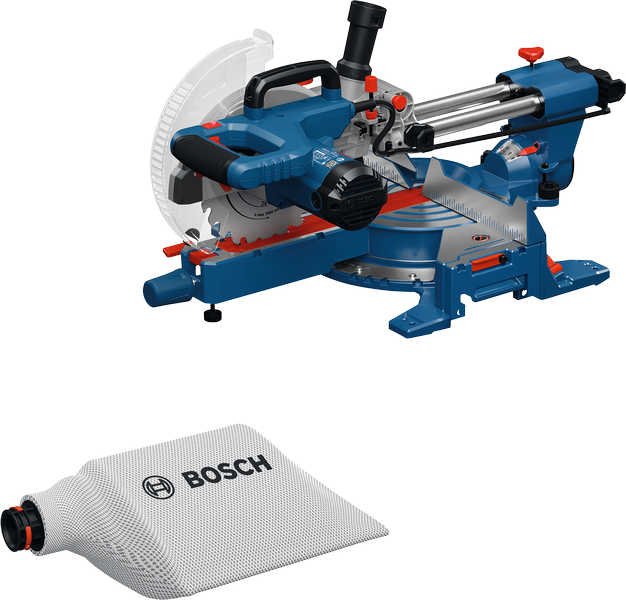

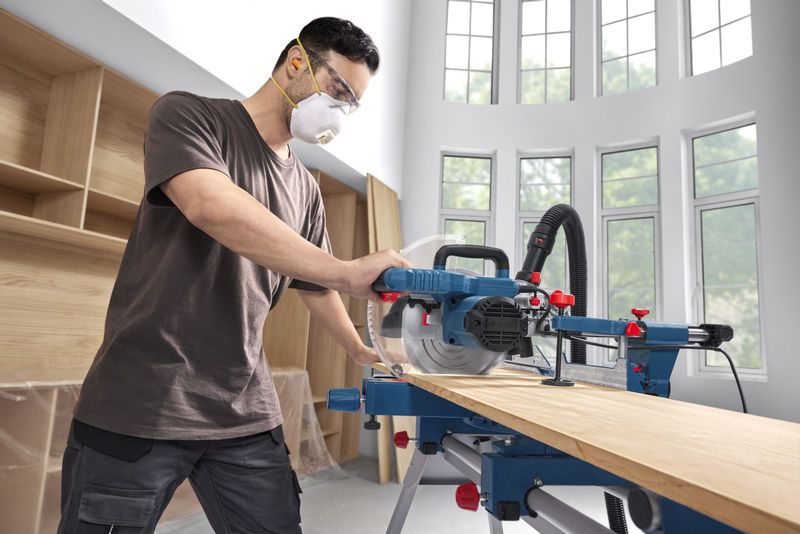

Bosch GCM305-216S Mitre Saw
Price on request
216 mm sliding mitre saw cutting up to 70 x 315 mm, with an LED cut-line light that needs no adjustment. Front bevel control for quick angle changes.
| Range | Bosch Professional |
|---|---|
| Power source | Corded |
| Order number | 0601B610L0 |
